Tuesday, February 3, 2009

6802 CPU with 4 pin crystal oscillator

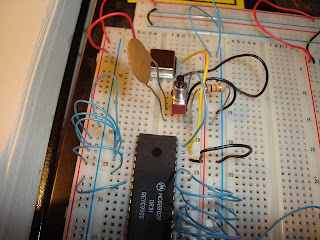

This is a Motorola MC6802 CPU with a 1.0 MHz Crystal Oscillator (4 pin). I wanted to compare the signals generated by the 4 pin (which includes the oscillator) vs the 2 pin crystal. The 4 pin was a bit smoother.
